Template for Invisible Hinge

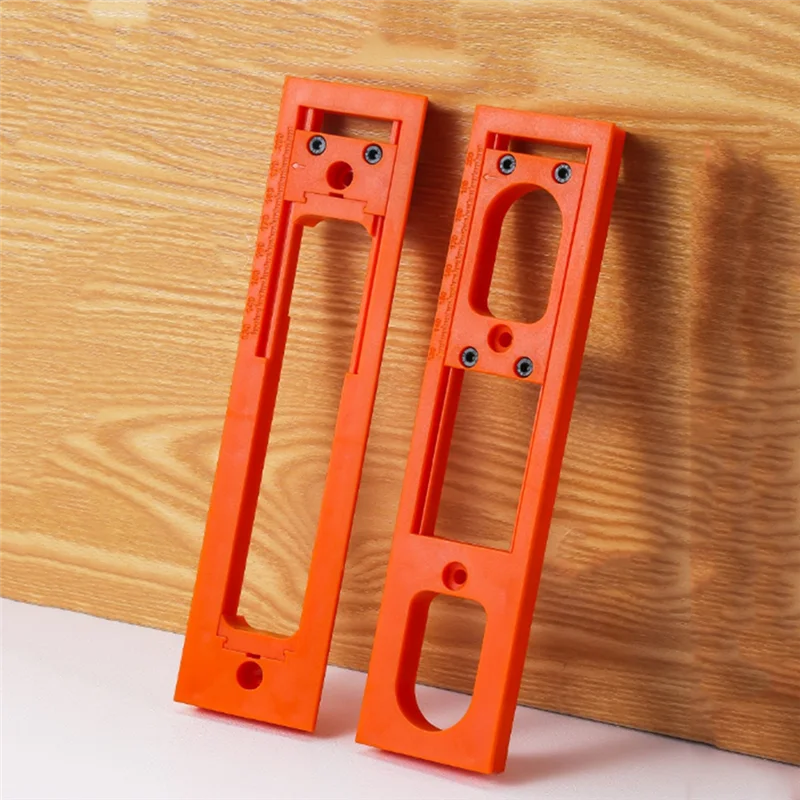

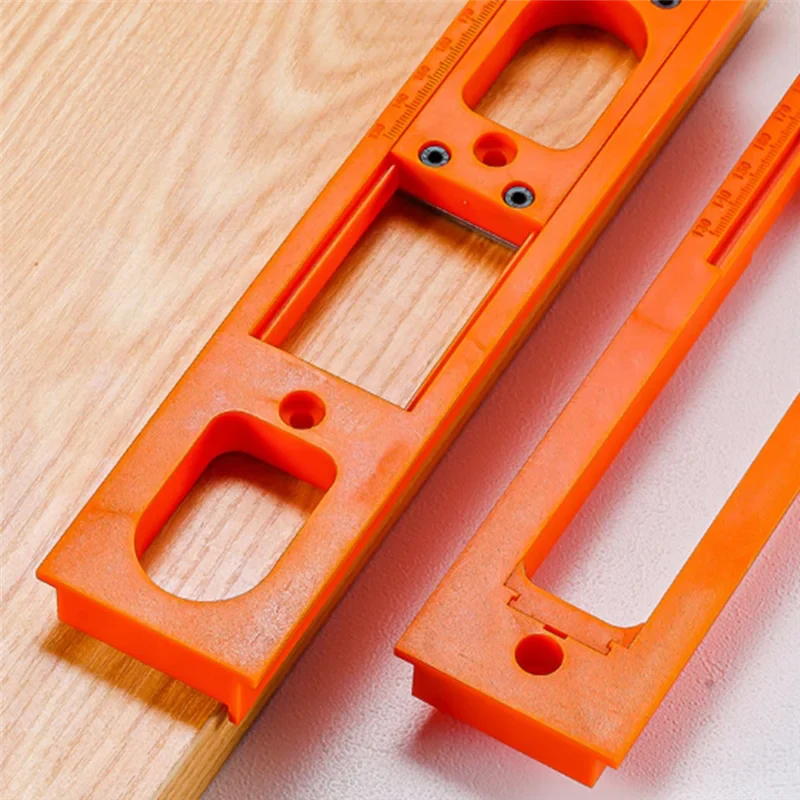

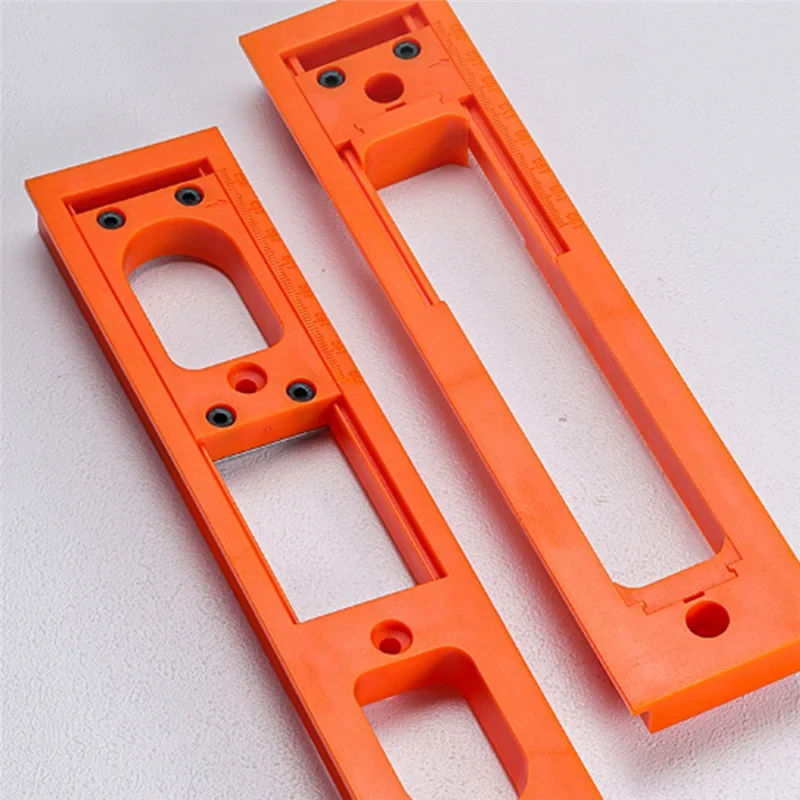

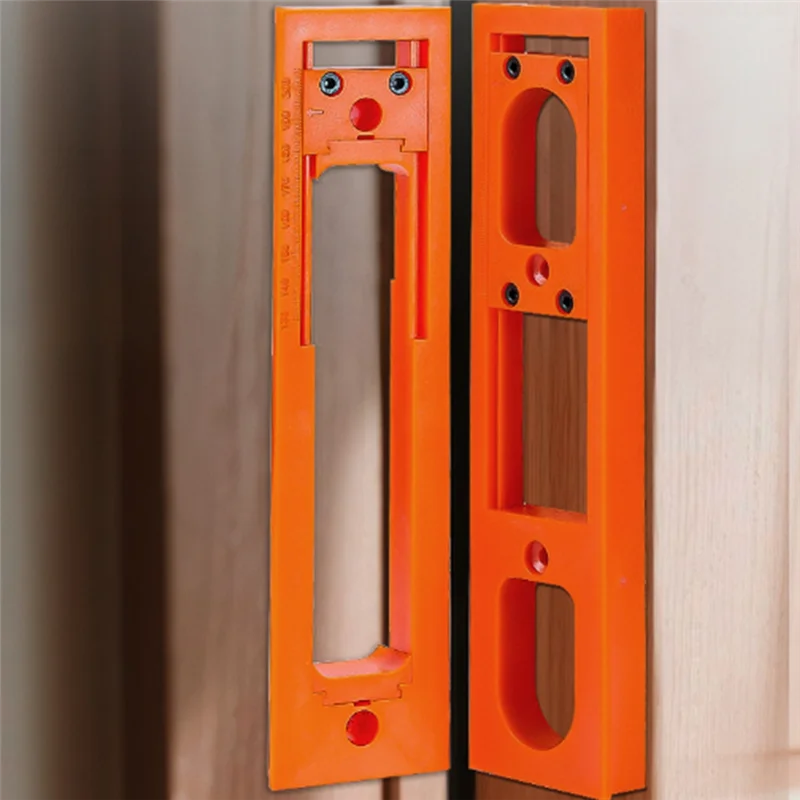

Invisible Hinge Installation Jig – Kit with 1 or 2 Units

Fast, precise, and professional installation of invisible hinges on wooden doors.

Achieve perfectly aligned recesses and flawless hinge installation with this invisible hinge installation jig, designed for professionals and DIY users who demand accuracy and clean finishes.

Efficient and Easy-to-Use Design

This jig is engineered to simplify and speed up the installation process of invisible hinges. With integrated alignment guides and a quick-fix system, it eliminates guesswork and reduces installation errors. Simply position, align, and cut for consistent results every time.

Key Advantages

• Quick and precise installation with perfectly aligned recesses
• Adjustable to fit multiple invisible hinge sizes
• No additional tools required for fixing and alignment
• High durability engineering plastic resistant to impact
• Professional finish with clean, accurate cuts

Hinge Compatibility

• Hinge leaf width: 23 mm to 30 mm
• Total hinge length: 2.5" (63 mm) to 6" (152 mm)

Technical Specifications

• Material: High-strength engineering plastic
• Application: Installation of invisible hinges on wooden doors
• Door compatibility: Standard residential and commercial wooden doors

Kit Options

• Kit with 1 installation jig
• Kit with 2 installation jigs (ideal for teams or continuous use)

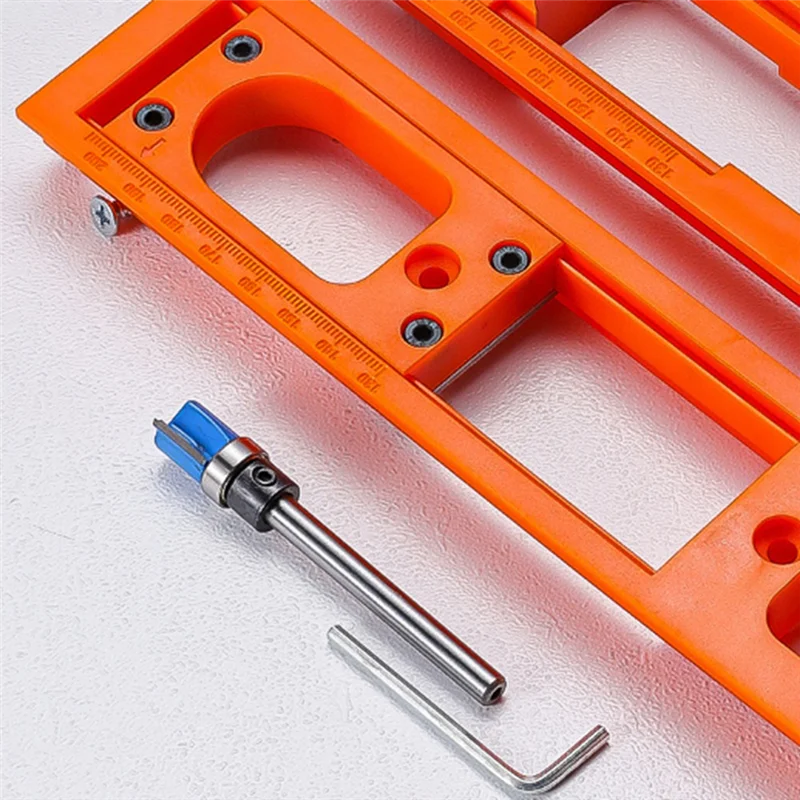

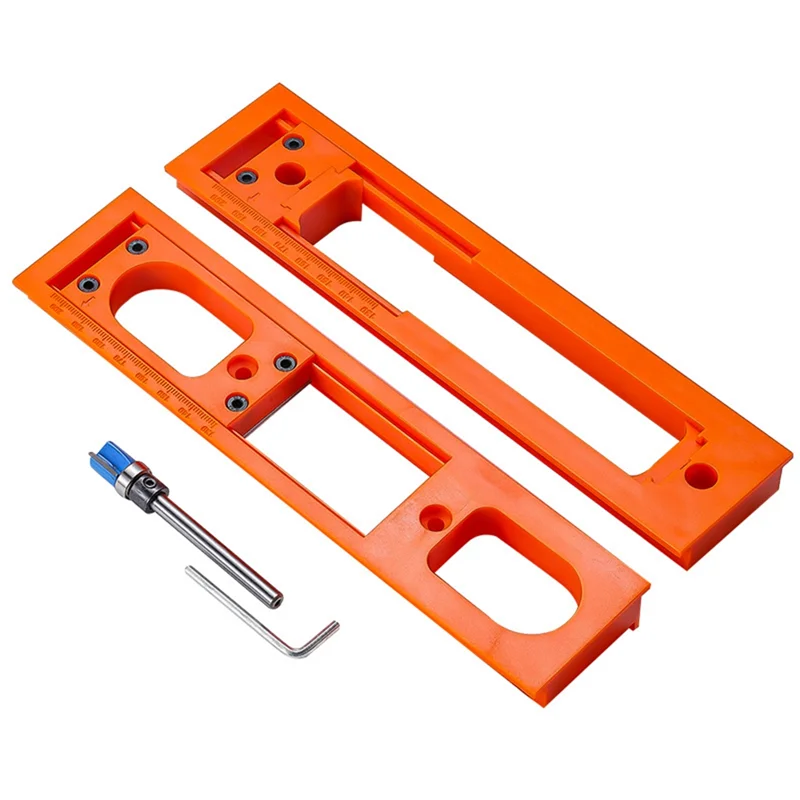

Package Contents

• 1x or 2x Invisible Hinge Installation Jig (according to selected option)
• 1x Router-style drill bit with depth limiter
• 1x Allen key for adjustments

Upgrade your door installations with a jig designed for precision, speed, and professional-quality results. Ideal for woodworking, furniture assembly, and interior door projects where accuracy matters.
